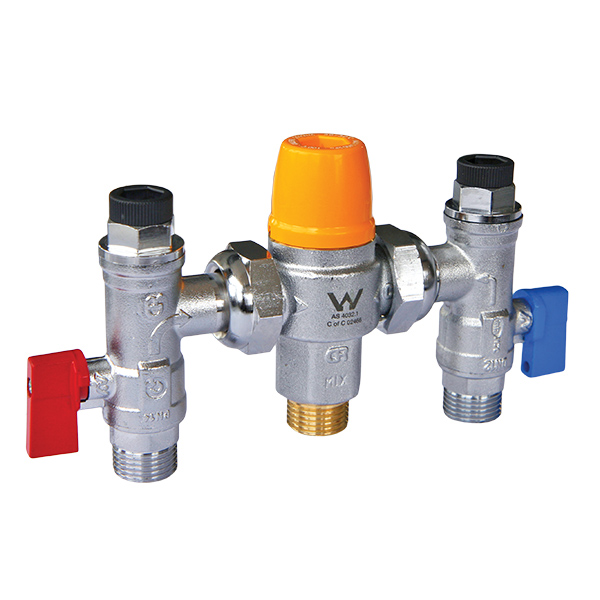

The Caleffi 2522TMF series is a high performance thermostatic mixing valve
and has been specifically designed and manufactured to meet and exceed the
requirements of: “AS 4032.1”. This model supercedes both the 2522TMX and
5213TMX series valves.

In certain sections of our society, there is a need to protect the most vulnerable
from the danger of scalding caused by hot water. Hence, the need for thermostatic
mixing valves. The Caleffi 2522TMF series provides water at a safe and usable
temperature in situations where the control of the temperature of the water
discharging from an outlet is of the utmost importance, i.e. within hospitals,
schools, nursing homes, etc.

This valve series can be used with high temperature water in solar applications.
The valve is designed to prevent the flow of water discharging from the mixed
water outlet in the event of the failure of hot or cold supply. The valve is supplied
complete with strainer and check valve at both hot and cold inlets.
